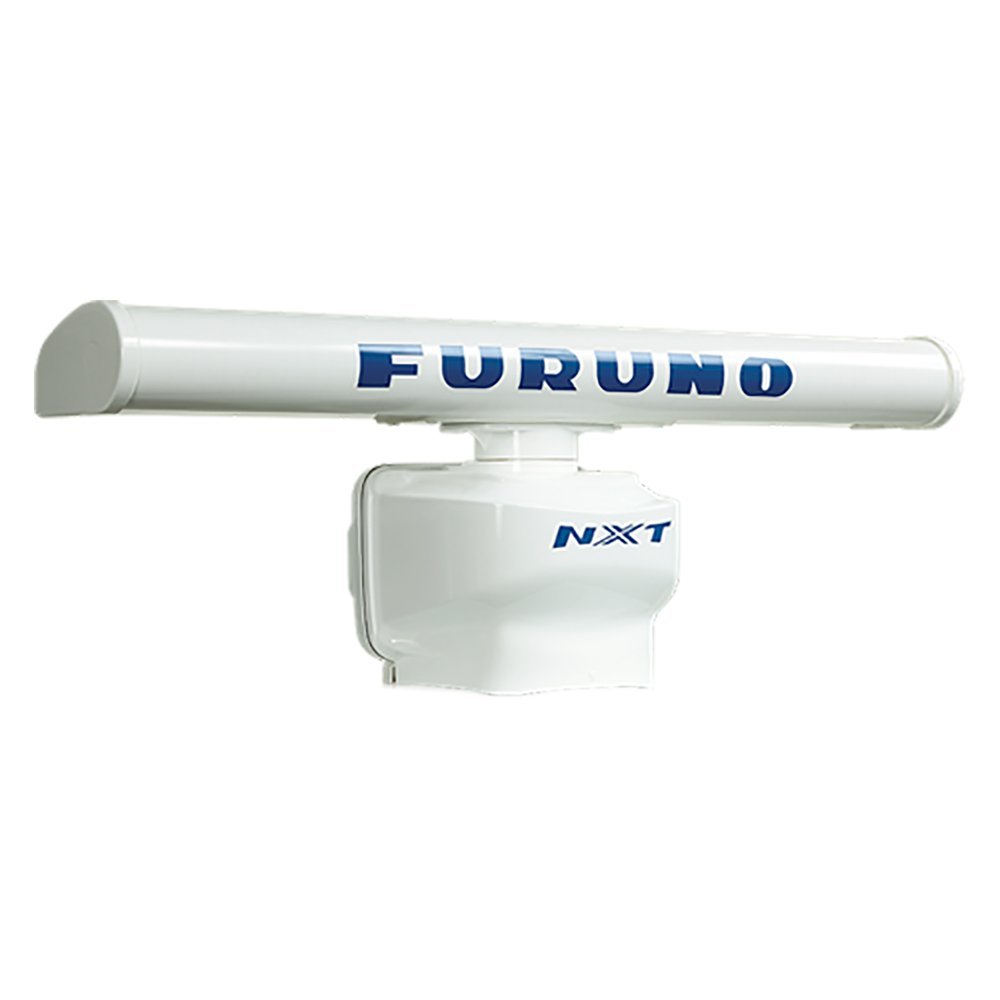

DRS25ANXT/4 Radar Pedestal 4 Array – 15M Cable
The DRS25ANXT/4 combines a radar pedestal, 4-foot array, and 15-meter cable for compatible installations. This complete configuration supports target monitoring while the included cable simplifies scanner connection, helping operators assess surrounding traffic and coastline features from the helm.
Furuno DRS25ANXT/4 Radar w/4ft Array Specs
| Brand | Furuno |
| Model Name | DRS25A-NXT Solid State Doppler Radar |
| Part Number/SKU | DRS25ANXT/4 |
| Technology Category | High-Power Solid State Pulse Compression (Doppler) |
| Radar Type | 4ft Open Array |
| Peak Power Output | 200 Watts (Equivalent to 25kW Magnetron) |
| Horizontal Beamwidth | 1.9° (1.5° with RezBoost) |
| Max Range | 96 Nautical Miles |
| Target Tracking | Target Analyzer™, Fast Target Tracking™, Bird Mode |
| Networking Ports | 1x Ethernet Port (15M Cable Included) |
| Voltage Input | 12-24V DC |
| Power Draw | 110W (Max Transmit) |
| Waterproofing | IP56 |
| Weight | Pedestal: 41.4 lbs; Array: 11 lbs |
| Country of Origin | Japan |
| Standard Warranty | 2-Year Manufacturer Warranty |
Common Question of Furuno DRS25ANXT/4
What array size is included?
The Furuno DRS25ANXT/4 package includes a four-foot open array and a 15-meter cable. This radar pedestal requires compatible Furuno electronics, suitable structural support, clear rotation space, and protected cable routing. Verify mounting dimensions and display compatibility before commissioning the four-foot Furuno array.
How long is the cable?
The supplied cable is 15 meters long. Measure the complete route between the DRS25ANXT/4 pedestal and compatible Furuno display, allowing service loops and avoiding sharp bends, abrasion, heat, and moisture. Confirm connector compatibility and network requirements for stable 15-meter radar connectivity.
Does it include a display?
No display is identified in the product title. The listed components are the DRS25ANXT/4 pedestal, four-foot array, and 15-meter cable. Confirm the compatible Furuno display, power accessories, mounting hardware, and system connections before ordering this complete radar configuration.
