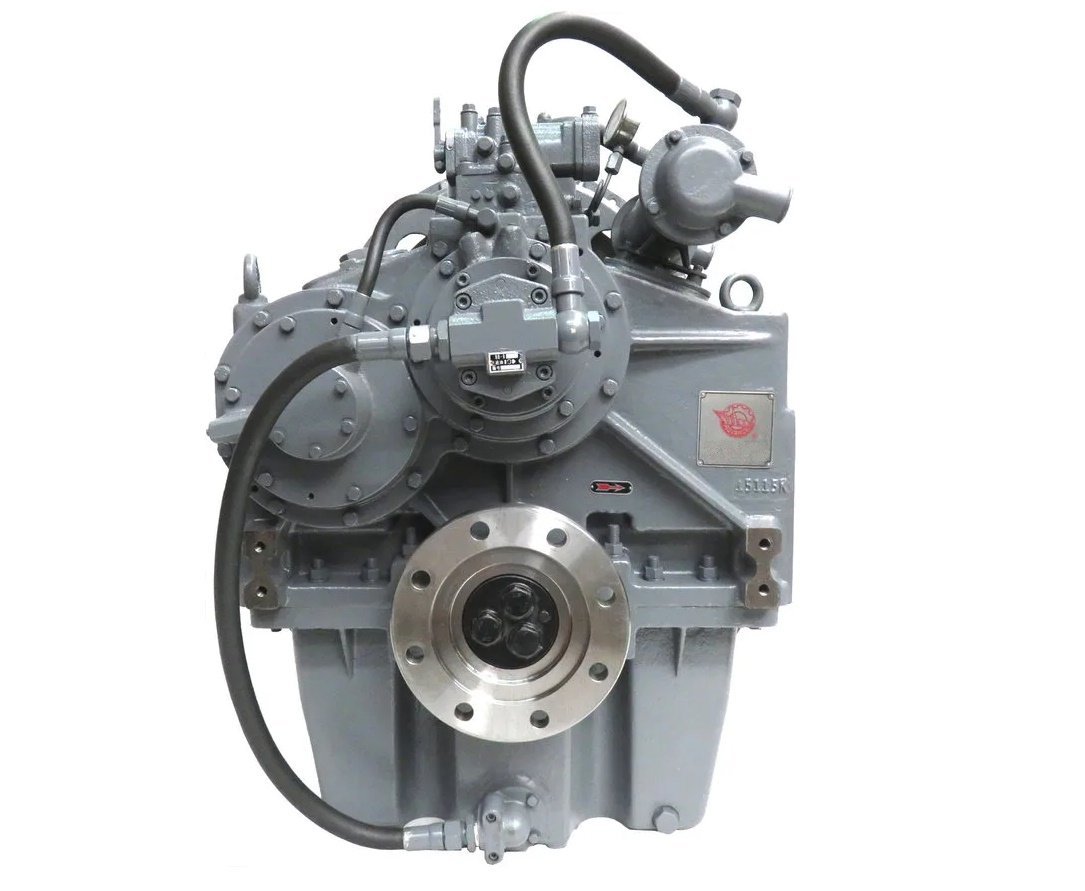

NEW Advance HCD400A Heavy Duty Marine Gearbox 5.70:1 Reduction
With a 5.70:1 reduction ratio, the Advance HCD400A helps match compatible engine output to propeller requirements. Its gearing lowers propeller speed and increases available torque, supporting predictable propulsion performance.
$10,602.00
In Stock
Description
SET
Advance HCD400A 5.70:1 Marine Gearbox Specs
| Brand | Advance |
| Full Model Code / Part Number | HCD400A (5.70:1) |
| Country of Origin | China |
| Gearbox Configuration / Layout | Vertical Offset |
| Actuation & Control Type | Hydraulically Operated Multi-Disc |
| Available Reduction Ratios | 5.70:1 |
| Max Input Power Rating | 400 kW (536 HP) @ 1800 RPM |
| Max Input Torque | 2600 Nm / 1917 lb-ft |
| Max Input Speed | 2100 RPM |
| Bell Housing Adapter / SAE Flange Size | SAE #0, SAE #1 |
| Clutch Type & Operation | Oil-Actuated Multi-Disc |
| Fluid / Oil Specification | SAE 30 / SAE 40 Marine Diesel Engine Oil |
| Oil Capacity | 55 Liters |
| Integrated Oil Cooler Option | Yes (Raw Water Heat Exchanger) |
| Shift Solenoid / Electric Control Voltage | Mechanical Control (12V/24V Electric Solenoid Optional) |
| Power Take-Off / PTO Option | Optional |
| Housing Material & Coating | Cast Iron |
| Dry Weight | 1850 kg / 4078 lbs |
| Standard Warranty | 1 Year |
| Application | Commercial fishing vessels, tugboats, ferries, and workboats with marine diesel engines up to 536 HP |
