Garmin GPSMAP 1623 Chartplotter
The Garmin GPSMAP 1623 Chartplotter features a 16 in Full HD IPS touchscreen with 1920 x 1080 resolution and 1100-nit brightness. Preloaded Worldwide Basemap supports Garmin Navionics+ compatibility, while network sonar through GSD or GCV modules, NMEA 2000, NMEA 0183, J1939, Wi-Fi, Bluetooth, ANT+, IPX7 protection, 10–32V DC input, and a 2-year warranty suit premium helm layouts.
$2,939.00
In Stock
Garmin GPSMAP 1623 Chartplotter Specs
| Brand | Garmin |
| Model Name | GPSMAP 1623 (Non-xsv) |
| Part Number/SKU | 010-02856-00 |
| Technology Category | High-Performance Chartplotter (Non-Sonar) |
| Display Size & Type | 16" IPS Touchscreen |
| Resolution | 1920 x 1080 pixels (Full HD) |
| Brightness | 1100 nits |
| Processor/Engine | Garmin High-Speed Processor |
| Operating System | Garmin Marine OS |
| Sonar Compatibility | Network Sonar Support via GSD/GCV Modules |
| Mapping/Charts | Worldwide Basemap (Garmin Navionics+ Compatible) |
| NMEA Interface | NMEA 2000, NMEA 0183 |

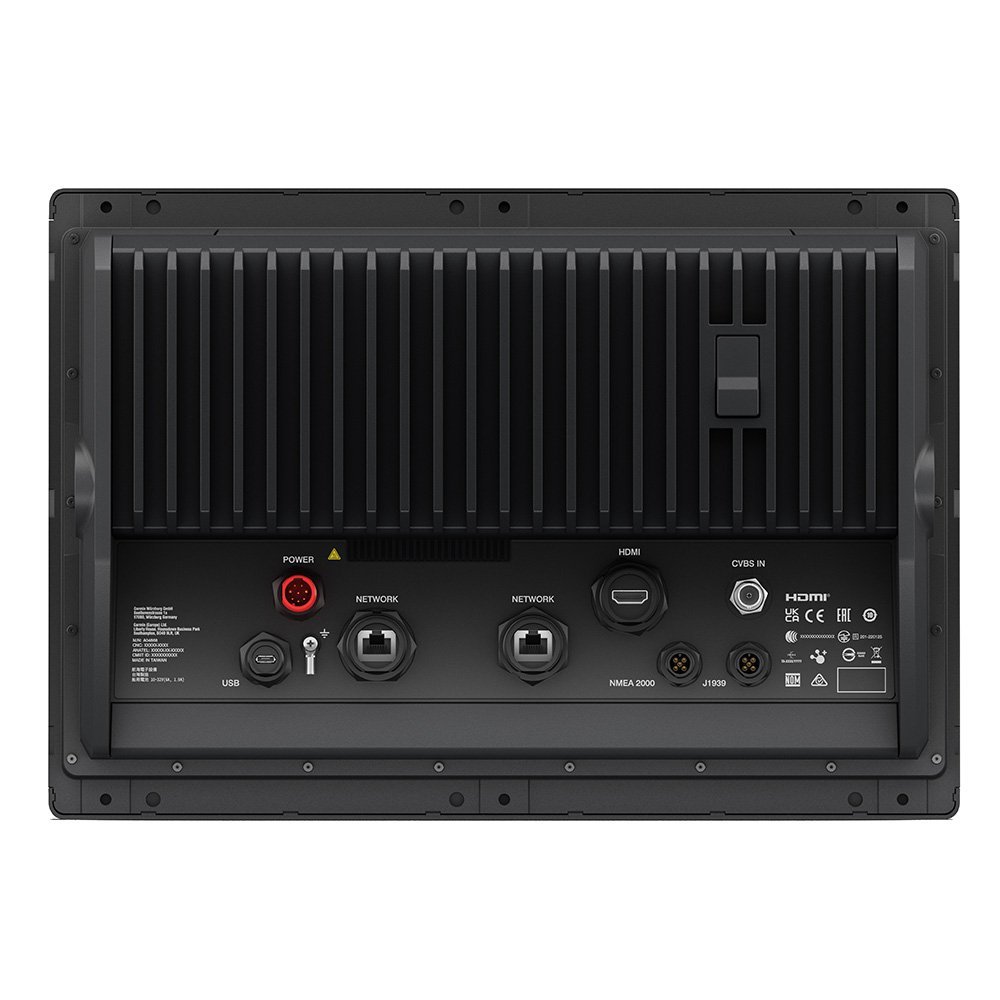

| Networking Ports | 2x Marine Network Ports, 1x J1939 |
| Wireless | Wi-Fi, Bluetooth, ANT+ |
| Voltage Input | 10 - 32 V DC |
| Power Draw | 3.5 Amps @ 12V |
| Waterproofing | IPX7 |
| Physical Dimensions | 385 x 263 x 71 mm |
| Cut-out Dimensions | 361 x 239 mm |
| Weight | 4.4 kg |
| Country of Origin | Made in Taiwan |
| Standard Warranty | 2 Years |
