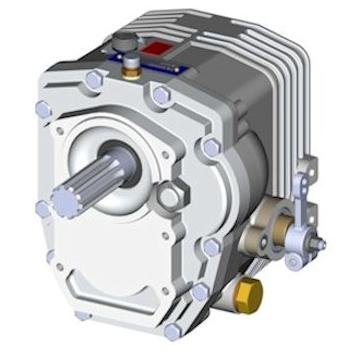

NEW PRM 125 D2.5 2.5:1 Marine Gearbox
Featuring a 2.5:1 reduction, the PRM 125 D2.5 helps adapt engine speed for compatible marine propellers. Its gearing supports torque multiplication, allowing the drivetrain to deliver controlled thrust while managing propeller demand.
$577.00
In Stock
Description
SET
PRM 125 D2.5 Marine Gearbox Specs
| Brand | PRM |
| Full Model Code / Part Number | PRM125 D2.5 (2.50:1) |
| Country of Origin | UK |
| Gearbox Configuration / Layout | Parallel Offset |
| Actuation & Control Type | Mechanical Cone Clutch |
| Available Reduction Ratios | 2.50:1 |
| Max Input Power Rating | 37 kW (50 HP) @ 3000 RPM |
| Max Input Torque | 125 Nm / 92 lb-ft |
| Max Input Speed | 4500 RPM |
| Bell Housing Adapter / SAE Flange Size | Borg Warner Flange / Universal Adapter |
| Clutch Type & Operation | Mechanical Cone Clutch |
| Fluid / Oil Specification | ATF Dexron II / III |
| Oil Capacity | 0.4 Liters |
| Integrated Oil Cooler Option | No |
| Shift Solenoid / Electric Control Voltage | Mechanical Control Cable |
| Power Take-Off / PTO Option | No |
| Housing Material & Coating | Marine-Grade Aluminum Alloy |
| Dry Weight | 13 kg / 28.6 lbs |
| Standard Warranty | 2 Years |
| Application | Small-to-medium sailboats, workboats, and auxiliary diesel engines up to 50 HP |
