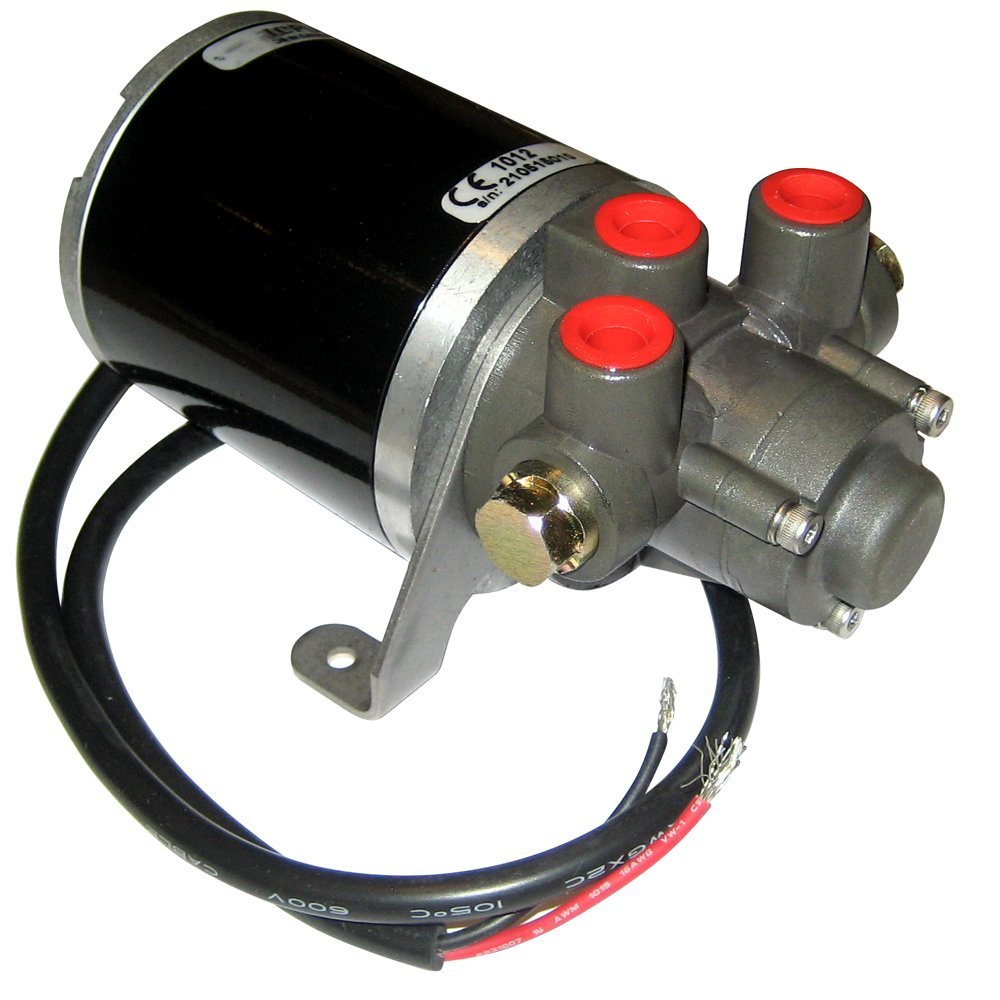

SI-TEX 12CI Pumpset – 12VDC
Designed for 12-volt systems, the SI-TEX 12CI Pumpset supplies hydraulic steering support for compatible autopilot installations. Its specified 12-cubic-inch capacity helps simplify cylinder matching, allowing the system to deliver controlled rudder movement while reducing manual steering effort.
SI-TEX 12CI Pumpset - 12VDC Specifications
| Drive Type | Reversible Hydraulic Gear Pump |
| Pump/Ram Capacity | 12 Cubic Inch (12ci) System Capacity |
| Flow Rate / Speed | 0.8L - 1.0L per Minute Flow Rate |
| Max Pressure | 50 Bar (725 PSI) Standard |
| Cylinder Compatibility | Small to Medium Steering Rams |
| Operating Voltage | 12V DC System |
| Peak Current Draw | 15 Amps Maximum Load |
| Average Power Draw | 3A - 7A Typical Cruising |
| Motor Type | Permanent Magnet Reversing DC |
| Computer Compatibility | SP-70, SP-80, NAC-2, ACU-200 |
| Port Size / Thread | 1/4" NPT Standard Fittings |
| Drive Connection | Hydraulic High-Pressure Lines |
| Rotation/Stroke Direction | Dual-Direction Precision Flow |
| Mounting Type | Vertical or Horizontal Foot Mount |
| Housing Material | Anodized Aluminum & Steel Alloy |
| Waterproof Rating | IP55 Marine Protected |
| Operating Temperature | -15°C to +55°C Marine Grade |
| Length (Overall) | 185 mm Compact Profile |
| Width/Diameter | 95 mm Body Diameter |
| Weight | 3.1 kg (6.8 lbs) |
| Included Accessories | Mounting Hardware, Sealing Kit |
| Key Mechanical Feature | Efficient gear design for low thermal buildup |
Common Question of SI-TEX 12CI Pumpset
What does the 12CI Pumpset provide?
The SI-TEX 12CI Pumpset is a 12VDC hydraulic autopilot pump set for compatible steering systems. The 12CI designation identifies intended cylinder capacity. Confirm hydraulic fittings, hoses, control computer, battery, wiring, pump direction, and hydraulic autopilot system compatibility before installation.
What cylinder size fits it?
The 12CI designation indicates compatibility with a 12-cubic-inch hydraulic cylinder, subject to SI-TEX documentation. Confirm the actual steering-cylinder volume, hose dimensions, pump capacity, voltage, current draw, control unit, and mounting requirements before purchase.
Does it operate a windlass?
No. The SI-TEX pumpset controls hydraulic steering and does not handle chain, rope, gypsy, or anchor drums. It is not an anchor windlass component. Use dedicated equipment for marine anchor retrieval.
