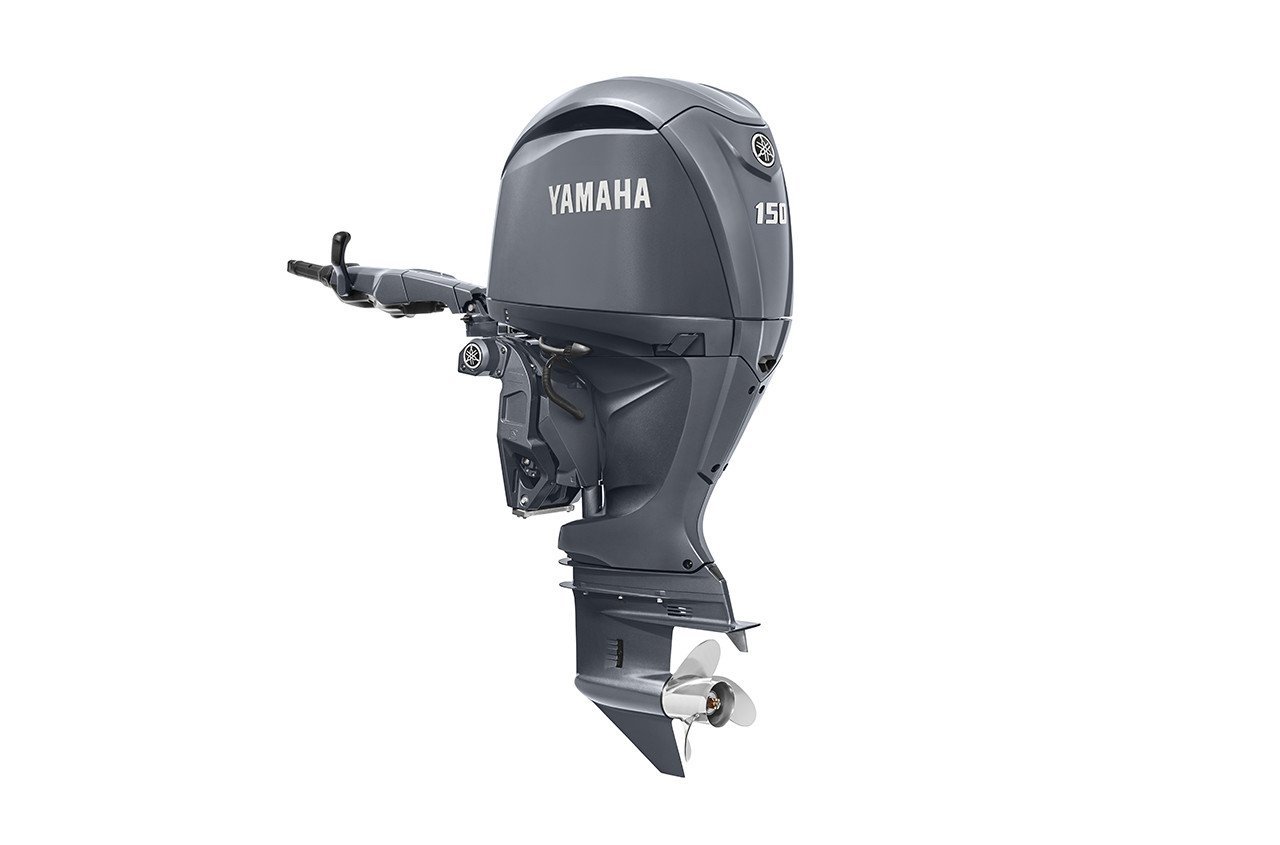

Yamaha 150HP F150XHA 4-Stroke Outboard – 25″ Shaft Control
With 150 horsepower, four-stroke operation, a 25-inch shaft, and control functionality, the Yamaha F150XHA supports compatible transoms. Its control system assists precise operation, while proper shaft matching helps maintain propeller depth and effective propulsion.
Description
SET
Yamaha 150HP F150XHA 4-Stroke Outboard Specs
| Brand | Yamaha Marine |
| Full Model Code / Part Number | F150XHA (Standard Rotation / Mechanical / 25" Shaft) |
| Country of Origin | Japan / USA |
| Engine Type & Configuration | 4-Stroke Inline 4 (DOHC 16-Valve) |
| Horsepower Output (HP / kW) | 150 HP (110 kW) |
| Displacement (cc / cu in) | 2670 cc (163 cu in) |
| Bore x Stroke (mm / in) | 96.0 x 92.0 mm (3.78 x 3.62 in) |
| Maximum RPM Range (Full Throttle Operating Range) | 5000 - 6000 RPM |
| Fuel Induction System | Electronic Fuel Injection (EFI) |
| Ignition System | TCI Microcomputer |
| Starting System | Electric Start |
| Steering System | Remote Mechanical Steering Compatible |
| Trim & Tilt System | Power Trim & Tilt |
| Gear Ratio & Shift Mechanism | 2.00:1 (Forward - Neutral - Reverse) |
| Exhaust System | Through Prop Hub |
| Recommended Transom Shaft Length | XL: 25 inches |
| Alternator / Charging Output (Amps / Watts) | 50 Amp (Maximum) / 630 Watts |
| Recommended Fuel Grade & Oil Type | Regular Unleaded (Min. 89 Octane Recommended) / Yamalube 4M FC-W 10W-30 |
| Dry Weight (kg / lbs) | 221 kg / 487 lbs |
| Standard Warranty | 3 Years Limited Pleasure Boat Warranty |
Common Question of Yamaha F150XHA
What does F150XHA Control mean?
It identifies a Yamaha 150-horsepower four-stroke outboard with a 25-inch shaft and control equipment indicated by the listing. Confirm whether the package includes a control box, cables, gauges, or other rigging. Verify fuel system, steering, battery, wiring, transom strength, and mounting requirements before installing this high performance outboard motor.
What transom fits its shaft?
A 25-inch transom is the intended match for this F150XHA configuration. Measure the boat according to Yamaha’s instructions before purchase because incorrect shaft length can affect cooling-water pickup, gearcase position, propeller immersion, steering response, and trim. Correct measurement supports this ready to bolt marine installation.
Is it a four-stroke?
Yes. The product title identifies F150XHA as a 150-horsepower four-stroke outboard. Confirm the exact fuel system, control arrangement, steering equipment, battery requirements, wiring, fuel supply, engine weight, and package contents before installation or repowering.
