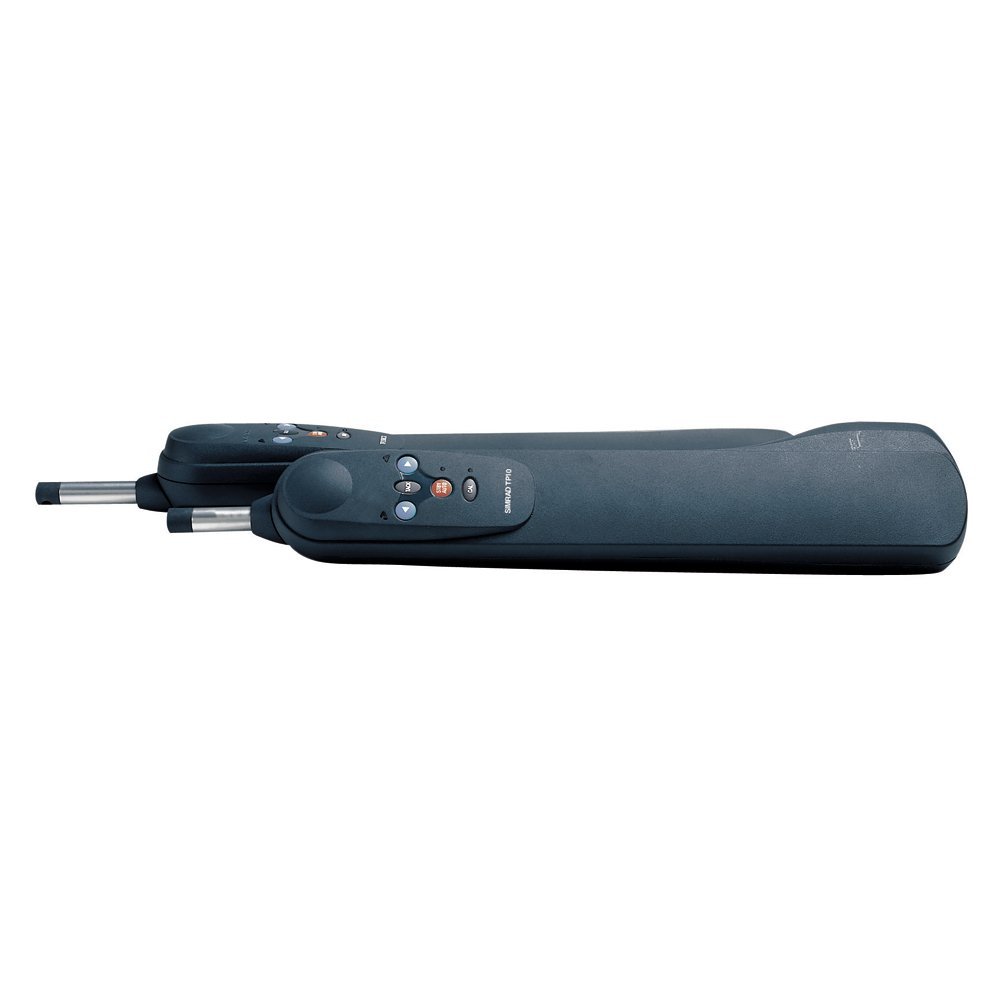

Simrad TP22 Tillerpilot
The Simrad TP22 Tillerpilot provides automated steering assistance for compatible tiller-steered boats. By controlling tiller movement in response to course changes, it helps reduce constant manual correction and supports steadier navigation during coastal cruising, fishing, and extended sailing trips.
SIMRAD TP22 Tillerpilot Specifications
| Drive Type | Mid-Range Electromechanical Tiller Drive |
| Pump/Ram Capacity | Self-Contained All-in-One Actuator |
| Flow Rate / Speed | Hard-over to Hard-over: 6.9 Seconds |
| Max Pressure | 70 kg (154 lbs) Peak Thrust |
| Cylinder Compatibility | Sailboats up to 36ft (11m) Length |
| Operating Voltage | 12V DC System |
| Peak Current Draw | 4.0 Amps Maximum |
| Average Power Draw | 0.5A Typical (Auto mode) |
| Motor Type | Reversing DC Motor |
| Computer Compatibility | Integrated Internal Processor |
| Port Size / Thread | NMEA 0183 & SimNet (N2K via adapter) |
| Drive Connection | Quick-Release Tiller Pin |
| Rotation/Stroke Direction | Linear Push-Pull Extension |
| Mounting Type | Cockpit Tiller Mount (Starboard or Port) |
| Housing Material | UV-Stabilized High Impact Polymer |
| Waterproof Rating | IPX6 Fully Waterproof Enclosure |
| Operating Temperature | -10°C to +55°C Marine Grade |
| Length (Overall) | 610 mm (Retracted) |
| Width/Diameter | 105 mm Body Width |
| Weight | 0.9 kg (Lightweight Portable) |
| Included Accessories | Tiller Pin, Deck Socket, Power Cable |
| Key Mechanical Feature | Internal fluxgate compass with 1-degree accuracy |
Common Question of Simrad TP22
What is the Simrad TP22?
The Simrad TP22 is a tillerpilot for compatible tiller-steered boats. It controls steering through an electric linear drive rather than a hydraulic pump. Confirm tiller geometry, boat displacement, mounting position, power supply, wiring, steering travel, and marine autopilot controller compatibility before installation.
What boats suit this pilot?
Tiller-steered boats within the TP22’s rated operating limits are the intended application. Verify displacement, tiller load, mounting points, battery capacity, cable routing, steering travel, and environmental conditions before purchase. Correct installation supports dependable course control.
Is it an anchor windlass?
No. The TP22 controls compatible tiller steering and does not handle chain, rope, gypsy, or anchor drums. It is not an electric anchor windlass. Verify separate equipment for marine anchor retrieval.
