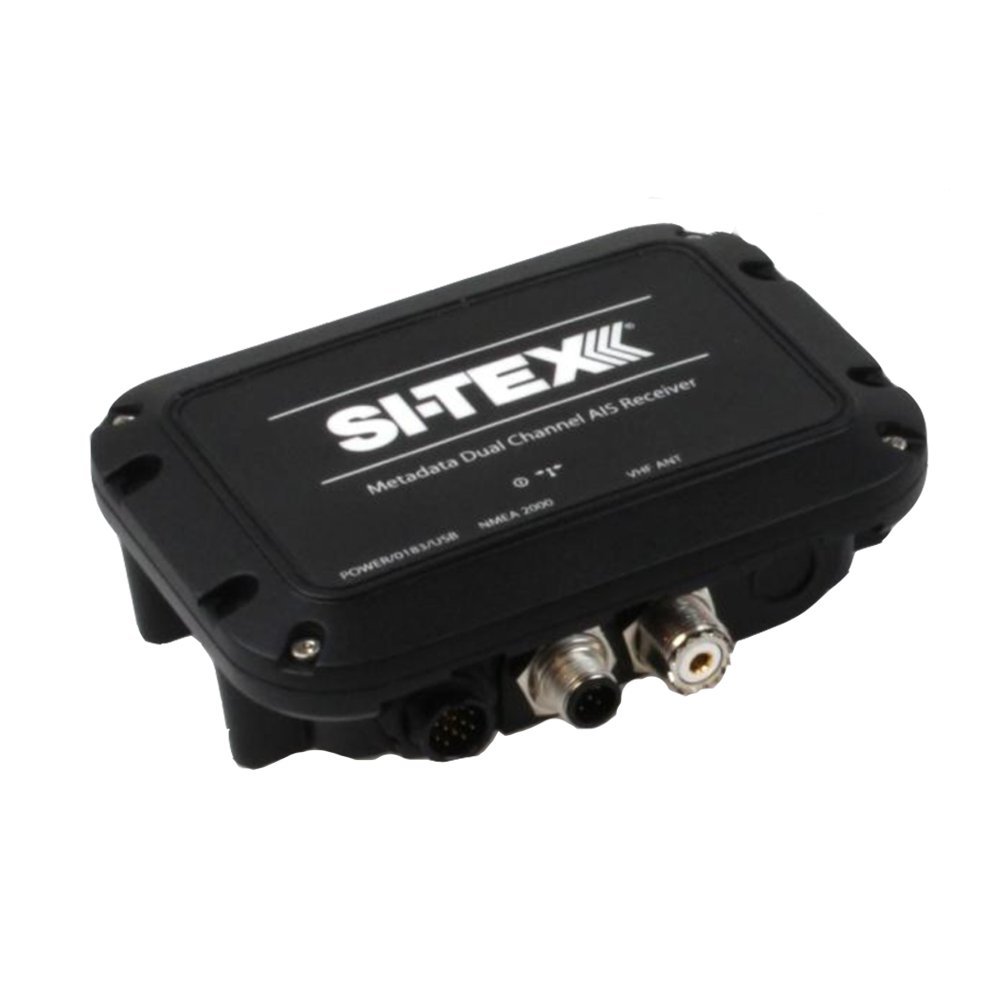

SI-TEX MDA-2 Metadata Dual Channel Parallel AIS Receiver
The SI-TEX MDA-2 provides dual-channel parallel AIS reception for metadata monitoring applications. Simultaneous channel processing helps collect target information efficiently, supporting improved awareness of nearby vessels and providing compatible systems with broader AIS data coverage.
SI-TEX MDA-2 Metadata Dual Channel AIS Receiver Specifications
| Communication Type | Dual-Channel Parallel AIS Receiver |
| AIS Class/Protocol | Class A & B Passive Monitoring |
| Output Power | N/A (Passive Receiving) |
| Frequency Range | 156.025 – 162.025 MHz |
| Reporting Rate | Real-Time Data Refresh |
| Operating Voltage | 12V / 24V DC Support |
| Current Draw | < 120mA Average @ 12V |
| Interface/Networking | NMEA 2000, NMEA 0183, USB Interface |
| Internal GPS | Integrated GNSS (Optional use for time-stamping) |
| Display Type | Internal Power & Status LEDs |
| Waterproof Rating | IPX7 Fully Waterproof Unit |
| Operating Temperature | -15°C to +55°C Marine Grade |
| Length (Overall) | 140 mm Chassis Depth |
| Width/Diameter | 100 mm Unit Width |
| Weight | 0.28 kg (0.6 lbs) |
| Included Accessories | Power/Data Cable, PC Software Utility |
| Key Mechanical Feature | Simultaneous reception of all AIS message types |
Common Question of SI-TEX MDA2
What is the MDA-2 receiver?
The SI-TEX MDA-2 is a metadata dual-channel parallel AIS receiver according to the listing. It receives compatible AIS information through parallel channels. Confirm antenna inputs, output connections, display, power supply, software, network, and AIS receiver system compatibility before installation.
What does dual channel mean?
Dual channel means the receiver monitors two AIS channels in parallel, subject to the unit’s specifications. Confirm antenna configuration, channel handling, output format, display, network, power supply, and software requirements before commissioning.
Does it transmit AIS data?
No. The MDA-2 is identified as a receiver, so it receives AIS traffic rather than transmitting the vessel’s own information. Verify antenna, display, wiring, power, and software before operation of this marine AIS transceiver receiver.
